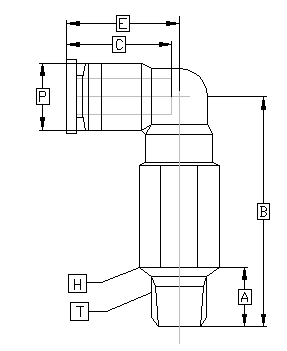

 Dimensiones Modelo de los EE:
Dimensiones para el uso de la referencia solamente: Guarniciones imperiales en pulgada, guarniciones métricas en el milímetro, U.S.O.
Nota:  El EE (codo extendido) se diseña para ser más alto que ME (el codo masculino) del mismo tamaño, para cuando esté instalado de lado a lado poder rotar el EE sobre ME y el tubo del EE puede pasar ME.


Codo Extendido

NO DE LA PARTE

Tubo OD

T
TAMAÑO DE LA PIPA

A

B

C

E

H

P

PESO (g)

 EE5/32 10-32

  5/32

10-32UNF

0.16

1.36

0.61

0.70

0.39

0.41

15.2

 EE 5/32 N1/8

  5/32

NPT1/8

0.31

1.48

0.61

0.70

0.39

0.41

16.8

 EE 3/16 N1/8

  3/16

NPT1/8

0.30

1.53

0.67

0.75

0.39

0.41

17.8

 EE 3/16 N1/4

  3/16

NPT1/4





0.67









 EE 3/16 N3/8

  3/16

NPT3/8

0.46

1.89

0.67

0.75

0.67

0.43

39.8

 EE 1/4 N1/8

  1/4

NPT1/8

0.40

1.64

0.68

0.85

0.47

0.52

22.8

 EE 1/4 N1/4

  1/4

NPT1/4

0.36

1.82

0.68

0.85

0.56

0.52

33.1

 EE 1/4 N3/8

  1/4

NPT3/8

0.45

1.94

0.68

0.85

0.67

0.52

40.0

 EE 5/16 N1/8

  5/16

NPT1/8

0.37

1.81

0.73

0.90

0.47

0.58

32.5

 EE 5/16 N1/4

  5/16

NPT1/4

0.39

1.90

0.73

0.90

0.56

0.58

34.4

 EE 5/16 N3/8

  5/16

NPT3/8

0.41

2.01

0.73

0.90

0.67

0.58

41.2

 EE 3/8 N1/4

  3/8

NPT1/4

0.34

2.17

0.83

1.10

0.69

0.71

62.4

 EE 3/8 N3/8

  3/8

NPT3/8

0.45

2.17

0.83

1.10

0.69

0.71

58.5

 EE 3/8 N1/2

  3/8

NPT1/2

0.54

2.56

0.83

1.10

0.88

0.71

116.6

 EE 1/2 N1/4

  1/2

NPT1/4

0.43

2.50

0.93

1.13

0.88

0.86

122.7

 EE 1/2 N3/8

  1/2

NPT3/8

0.43

2.47

0.89

1.16

0.75

0.86

85.5

 EE 1/2 N1/2

  1/2

NPT1/2

0.51

2.60

0.89

1.16

0.88

0.86

123.4





















NO DE LA PARTE

Tubo OD

T
TAMAÑO DE LA PIPA

A

B

C

E

H

P

PESO (g)

EE 4 M5

4

M5

5.4

36.1

14.4

17.8

10.0

10.6

15.4

EE 4 M6

4

M6

5.1

35.2

14.6

17.8

10.0

10.6

15.7

EE 4 1/8

4

R1/8

7.3

36.8

14.4

17.8

10.0

10.6

14.0

EE 4 R1/4

4

R1/4

8.9

36.4

13.8

17.8

14.0

10.6

21.8

EE 6 M5

6

M5

6.2

39.0

15.3

20.6

12.0

13.5

22.8

EE 6 M6

6

M6

5.8

39.6

16.1

20.6

12.0

13.5

23.2

EE 6 R1/8

6

R1/8

7.7

38.8

15.7

20.6

12.0

13.5

21.4

EE 6 R1/4

6

R1/4

8.9

45.0

15.5

20.6

14.0

13.5

30.4

EE 6 R3/8

6

R3/8

10.2

44.9

16.1

20.6

17.0

13.5

40.8

EE 6 R1/2

6

R1/2

12.7

48.1

15.8

20.6

21.0

13.5

63.5

EE 8 R1/8

8

R1/8

7.3

42.2

16.7

21.8

14.0

14.7

29.6

EE 8 R1/4

8

R1/4

9.2

46.7

16.4

21.8

14.0

14.7

31.8

EE 8 R3/8

8

R3/8

10.0

46.5

16.6

21.8

17.0

14.7

42.1

EE 8 R1/2

8

R1/2

11.6

52.7

16.5

21.8

21.0

14.7

66.8

EE 10 R1/8

10

R1/8

7.8

53.1

20.7

26.8

17.0

18.4

61.9

EE 10 R1/4

10

R1/4

8.8

56.3

20.5

26.7

17.0

18.2

61.2

EE 10 R3/8

10

R3/8

11.0

57.0

20.5

26.7

17.0

18.2

55.5

EE 10 R1/2

10

R1/2

12.9



20.2

26.8

21.0





EE 12 R1/4

12

R1/4

8.9

62.6

20.6

28.2

19.0

20.3

90.3

EE 12 R3/8

12

R3/8

10.7

62.9

20.6

28.2

19.0

20.3

82.6

EE 12 R1/2

12

R1/2

12.1



20.6

28.2

21.0

20.3
