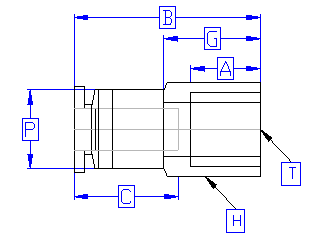

 Dimensiones Modelo de los FC:
Dimensiones para el uso de la referencia solamente: Guarniciones imperiales en pulgada, guarniciones métricas en el milímetro, U.S.O.

Conectador Femenino

NO DE LA PARTE

Tubo OD

T
TAMAÑO DE LA PIPA

C

D

G

H

P

PESO (g)

FC 5/32 N1/8

  5/32

NPT1/8

0.71

0.16

0.39

 1/2

0.43

11.5

FC 5/32 N1/4

  5/32

NPT1/4

0.70

0.16

0.47

 11/16

0.47

21.9

FC 1/4 N1/8

  1/4

NPT1/8

0.65

0.26

0.39

  9/16

0.51

16.3

FC 1/4 N1/4

  1/4

NPT1/4

0.73

0.26

0.47

 11/16

0.55

24.8

FC 5/16 N1/8

  5/16

NPT1/8

0.77

0.32

0.41

 11/16

0.59

27.7

FC 5/16 N1/4

  5/16

NPT1/4

0.73

0.32

0.48

 11/16

0.63

26.8

FC 5/16 N3/8

  5/16

NPT3/8

0.77

0.32

0.53

  3/4

0.62

26.4

FC 3/8 N1/4

  3/8

NPT1/4

0.85

0.38

0.45

  3/4

0.70

34.0

FC 3/8 N3/8

  3/8

NPT3/8

0.88

0.38

0.54

  3/4

0.71

30.2

FC 1/2 N1/4

  1/2

NPT1/4

0.91

0.50

0.53

 7/8

0.81

52.2

FC 1/2 N3/8

  1/2

NPT3/8

0.85

1.42

0.57

 7/8

0.78

44.2



















NO DE LA PARTE

Tubo OD

T
 TAMAÑO DE LA PIPA

C

D

G

H

P

PESO (g)

FC 4 1/8

4

R1/8

17.2

4.1

9.9

12

10.3

12.6

FC 4 R1/4

4

R1/4

17.8

4.1

12.5

17

11.0

22.6

FC 6 R1/8

6

R1/8

16.4

26.8

10.4

14

13.0

17.3

FC 6 R1/4

6

R1/4

16.8

6.2

12.1

17

13.0

22.6

FC 6 R3/8

6

R3/8

16.9

6.2

14.0

19

13.0

25.4

FC 8 R1/8

8

R1/8

20.0

8.1

10.1

10

15.0

26.5

FC 8 R1/4

8

R1/4

19.0

8.1

12.3

17

15.0

24.7

FC 8 R3/8

8

R3/8

17.7

8.2

13.8

19

15.1

25.2

FC 8 R1/2

8

R1/2

20.1

8.1

16.1

24

16.0

45.2

FC 10 R1/8

10

R1/8

22.3

10.2

10.1

19

18.0

37.0

FC 10 R1/4

10

R1/4

21.5

10.1

11.5

19

17.9

34.2

FC 10 R3/8

10

R3/8

20.8

10.1

13.1

19

17.9

28.2

FC 10 R1/2

10

R1/2

23.1

10.2

14.9

24

19.7

49.5

FC 12 R1/4

12

R1/4

21.1

12.0

14.7

21

20.4

50.6

FC 12 R3/8

12

R3/8

22.0

11.9

14.6

21

20.5

44.4

FC 12 R1/2

12

R1/2

21.8

12.0

16.4

24

20.3

49.2
