 Model MM and MU Dimensions:
Dimensiones para el uso de la referencia solamente: Guarniciones imperiales en pulgada, guarniciones métricas en el milímetro, U.S.O.

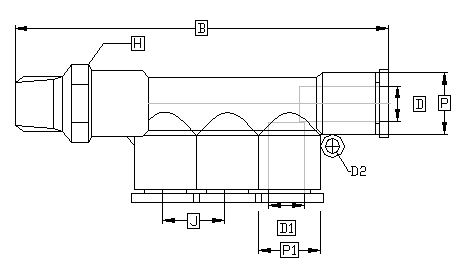

MM modelo Masculino Múltiple

No de la Parte

A

B

D

D1

H

J

P1

P2

T

D2

X1

Y1

X2

Y2

Peso, g

MM-1/4-5/32-N1/8

0.32

2.71

1/4

5/32

0.47

0.54

0.56

0.50

1/8NPT

0.12

0.47

0.55

0.38

0.46

23.5

MM-5/16-5/32-N1/4

0.39

2.82

5/16

5/32

0.55

0.51

0.58

0.51

1/4NPT

0.12

0.54

0.61

0.38

0.46

26.6

MM-5/16-1/4-N1/4

0.40

2.81

5/16

1/4

0.56

0.54

0.58

0.53

1/4NPT

0.12

0.54

0.61

0.47

0.55

27.1































MM06-04-R1/8

6.7

68.5

6

4

12

12.6

14.4

13.1

R1/8

3.0

11.5

13.6

9.7

11.6

23.7

MM08-6-R1/4

7.8

69.9

8

6

14

13.6

14.6

13.4

R1/4

3.0

13.6

15.6

11.5

13.6

25.5

MM10-8-R3/8

10.9

91.6

10

8

17

14.9

18.3

15.0

R3/8

4.0

16.0

18.3

13.6

15.6

25.1

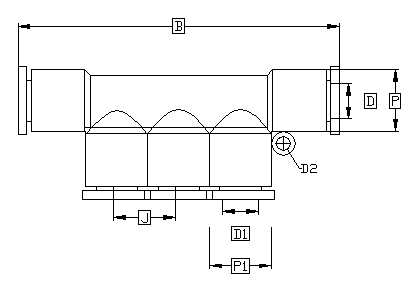

MU Manifold Union

No de la Parte

B

D

D1

F1

F2

J

P1

P2

D2

X1

Y1

X2

Y2

PESO (g)

MU1/4-5/32

2.44

1/4

5/32

0.38

1.62

0.52

0.57

0.51

0.12

0.47

0.55

0.38

0.46

15.7

MU-5/16-5/32

2.43

5/16

5/32

0.37

1.62

0.52

0.58

0.51

0.12

0.54

0.61

0.38

0.46

15.6

MU-5/16-1/4

2.43

5/16

1/4

0.38

1.63

0.53

0.58

0.52

0.12

0.54

0.61

0.47

0.55

16.2































MU-6-04

61.3

6

4

9.3

40.4

12.7

14.5

13.0

3.0

11.5

13.6

9.7

11.6

16.5

MU-8-04

61.7

8

4

9.4

40.9

13.2

14.6

13.0

3.0

13.6

15.6

9.7

11.6

16.4

MU-8-06





























MU-10-06

82.9

10

6

10.5

47.1

15.0

18.5

14.5

4.0

16.0

18.3

11.5

13.6

26.9

MU-10-08

83.0

10

8

10.9

47.9

14.9

18.3

15.0

4.0

16.0

18.3

13.6

15.6

26.8
