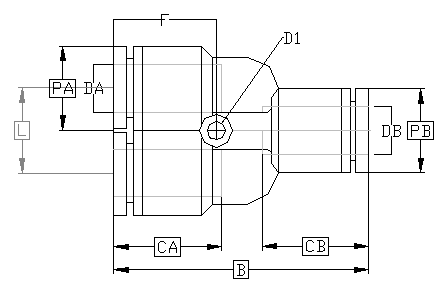

 Dimensiones Modelo de los RB:
Dimensiones para el uso de la referencia solamente: Guarniciones imperiales en pulgada, guarniciones métricas en el milímetro, U.S.O.

Rama reducido

No de la Parte

B

DA

DB

D1

F

PA

PB

X1

Y1

X2

Y2

PESO (g)

RB 5/32-1/8

1.33

1/8

5/32

0.12

0.57

0.41

0.41

0.38

0.46

0.38

0.46

6.3

RB-3/16-5/32

1.42

5/32

3/16

0.08

0.57

0.45

0.42

0.43

0.51

0.38

0.46

6.3

RB-1/4-5/32

1.44

5/32

1/4

0.08

0.57

0.52

0.42

0.47

0.55

0.38

0.46

7.0

RB-1/4-3/16

1.45

3/16

1/4

0.08

0.58

0.52

0.44

0.47

0.55

0.43

0.51

7.2

RB-5/16-1/4

1.68

1/4

5/16

0.12

0.69

0.58

0.52

0.54

0.61

0.47

0.55

9.0

RB-3/8-1/4

1.82

1/4

3/8

0.12

0.64

0.72

0.52

0.65

0.74

0.47

0.55

12.5

RB-3/8-5/16

1.98

5/16

3/8

0.16

0.79

0.72

0.58

0.65

0.74

0.54

0.61

13.3

RB-1/2-3/8

2.12

3/8

1/2

0.16

0.85

0.84

0.72

0.79

0.88

0.65

0.74

22.4

























RB-6-4

36.7

4

6

2.0

14.5

13.1

10.7

11.5

13.6

9.7

11.6

6.5

RB-8-6

42.4

6

8

3.0

17.2

14.7

13.1

13.6

15.6

11.5

13.6

9.0

RB-10-8

50.2

8

10

4.0

20.1

18.4

14.7

16.0

18.3

13.6

15.6

13.5

RB-12-10

54.6

10

12

4.0

22.4

20.0

18.4

18.5

21.4

16.0

18.3

21.7
