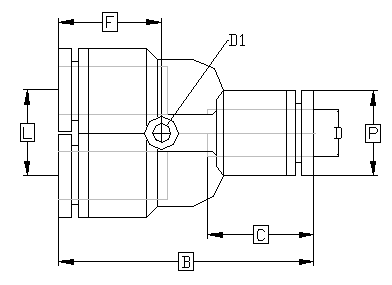

 Dimensiones Modelo de los YU:
Dimensiones para el uso de la referencia solamente: Guarniciones imperiales en pulgada, guarniciones métricas en el milímetro, U.S.O.

Unión De Y

No de la Parte

Tubo OD

B

C

F

L

P

X

Y

D1

PESO (g)

YU-5/32

  5/32

1.33

0.51

0.57

0.41

0.41

0.38

0.46

0.12

5.3

YU-3/16

  3/16

1.43

0.57

0.57

0.45

0.45

0.43

0.50

0.08

6.7

YU-1/4

  1/4

1.47

0.60

0.60

0.52

0.52

0.47

0.55

0.12

8.6

YU-5/16

  5/16

1.48

0.64

0.64

0.58

0.58

0.54

0.61

0.12

9.9

YU-3/8

  3/8

2.02

0.74

0.86

0.71

0.71

0.65

0.74

0.16

18.8

YU-1/2

  1/2

2.07

0.78

0.78

0.84

0.84

0.79

0.89

0.16

29.2























YU-4

4

33.5

13.3

14.9

10.7

10.7

9.7

11.5

3.0

5.4

YU-6

6

37.0

14.5

15.8

13.0

13.0

11.6

13.6

3.0

8.7

YU-8

8

38.4

16.0

16.0

14.7

14.7

13.6

15.5

3.0

9.6

YU-10

10

52.1

19.1

19.1

18.1

18.1

16.0

18.3

4.0

18.5

YU-12

12

54.8

21.6

21.6

20.9

20.9

18.6

21.5

4.0

25.9
