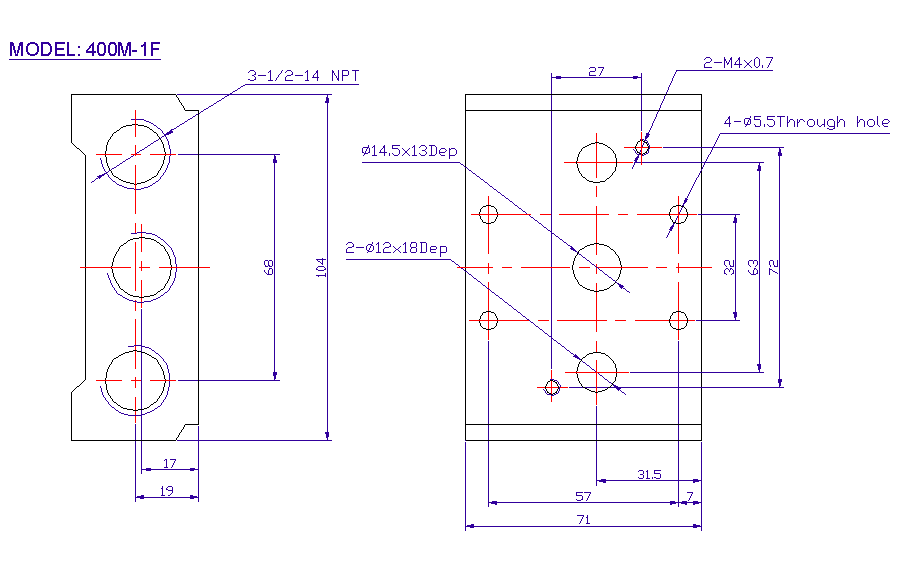

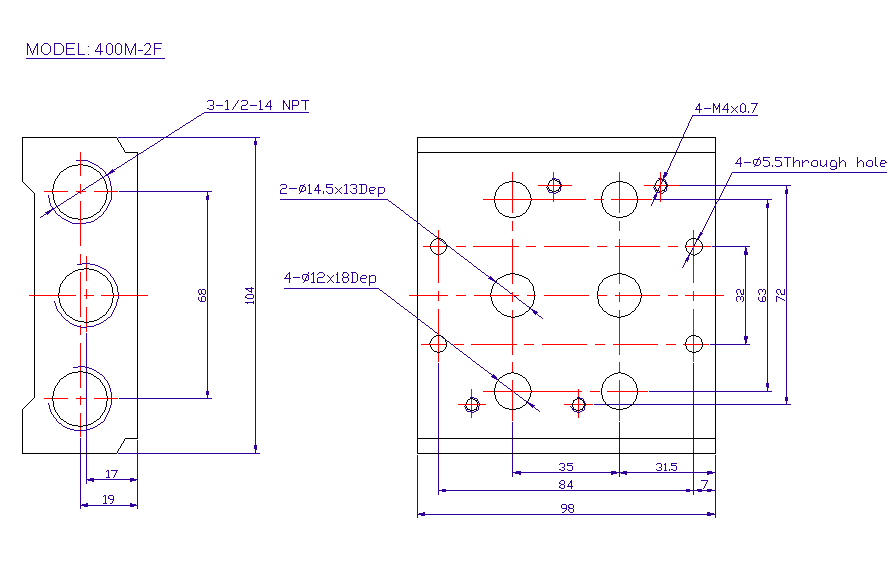

STC Solenoid Valve Manifold Dimensions

Download Dimensions: 4V400M-4   4V400M-8

4V-400M-4

  1/2" port
4 STATIONS 		Integrated Base for Mounting 4V-400 & 4A-400series Solenoid Valves
(Includes Mounting hardware and seal)
4V-400M-8   1/2" port
8 STATIONS
