STC Solenoid and Pneumatic Directional Control Valve Specifications

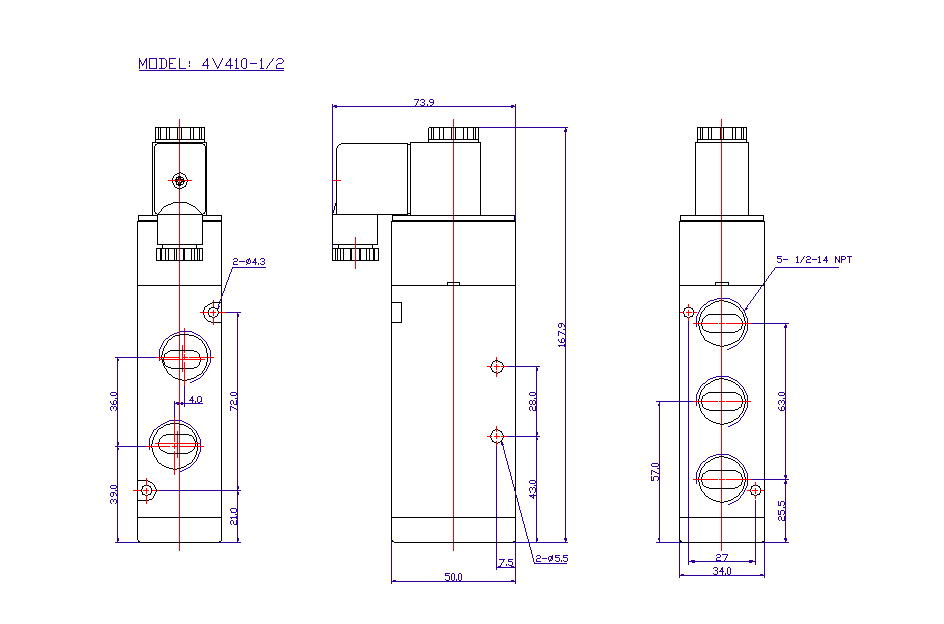

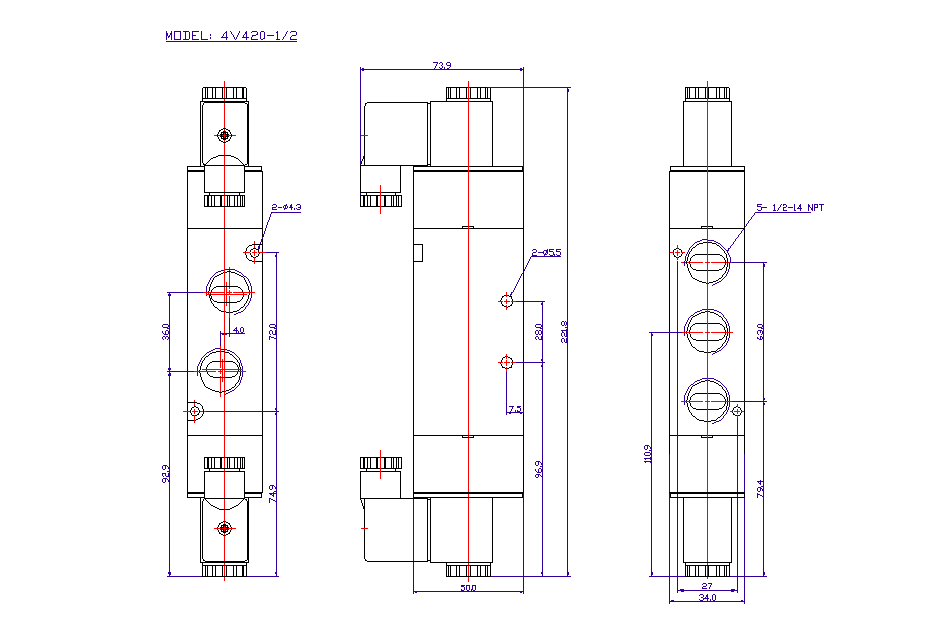

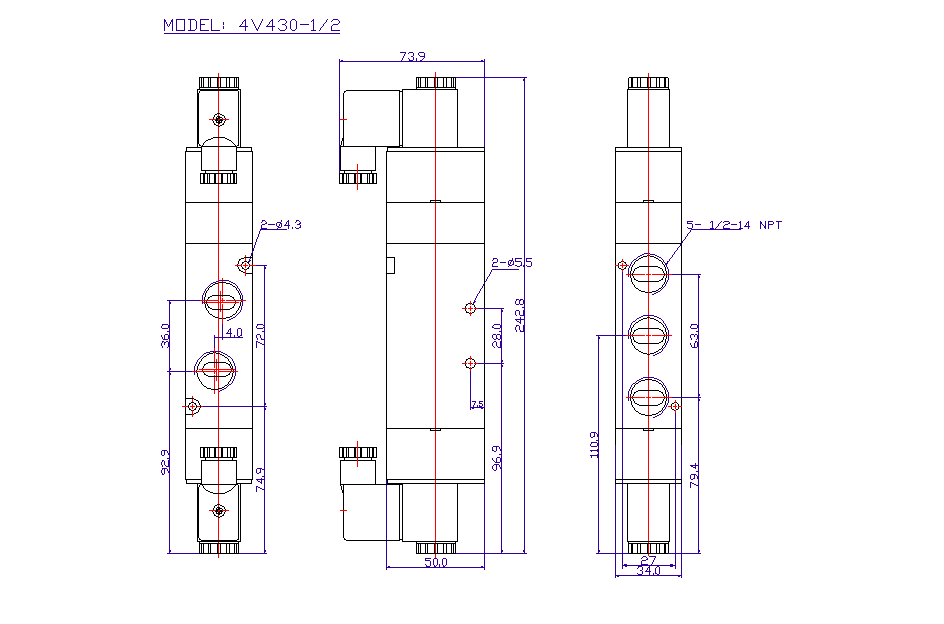

Download Dimensions: 4V410-1/2    4V420-1/2     4V430-1/2

Part No.

Unit Price

Valve Picture

Port Size
(NPT)

Voltage  Options

Electrical Entry Options

Port No/ Position/Solenoid

Cv
Flow Rate

Response Time

Power Consumption

4V410-1/2

$56.93

1/2 NPT

1=12VDC
2=24VDC

2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)

G=Grommet

D= DIN (with LED indicator)

5/2/1
Four Way Valve

2.79
160 SCFM @100 PSI

< 20 ms

3-4.8 W

4V420-1/2

$79.70

1/2 NPT

5/2/2
Double Solenoid
Four Way Valve

2.79
160 SCFM @100 PSI

< 20 ms

4V430C-1/2

$113.85

1/2 NPT

5/3/2
Double Solenoid
Three Position, Closed Center
Four Way Valve

2.79
160 SCFM @100 PSI

< 20 ms
